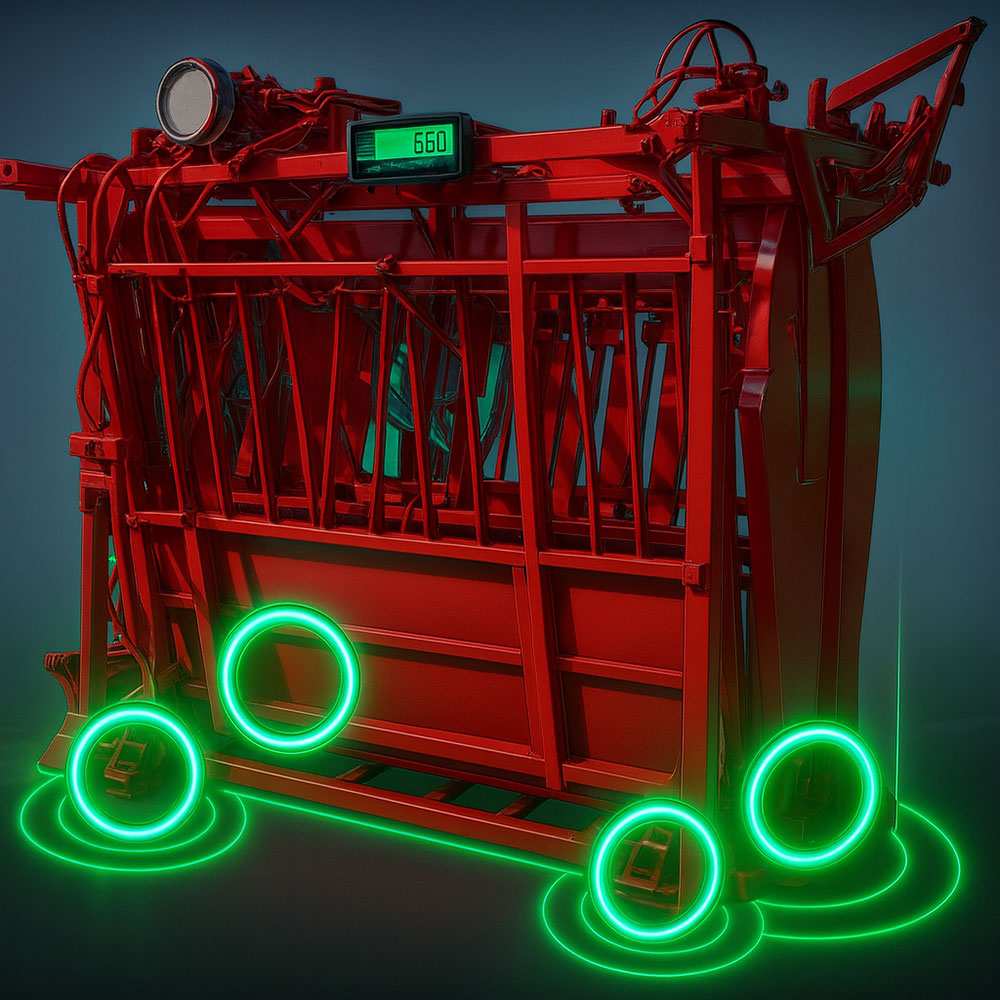

This is our working chute scale, with a capacity of 10,000 lbs. We attach a bar to the front of the chute and a bar to the back; each installation is unique. In this case, we welded the bracket onto the bottom frame. Then, we drill holes in our “C” channel and bolt the bracket down. At the bottom of the chute, we have a foot with holes for anchoring to the concrete. Aerospace-developed sealing agent provides maximum protection against moisture and ensures long-term durability in harsh agricultural environments. The scale can handle extreme temperatures, operating from -20°F to 140°F. We also sell working chute scales so you can add a scale to your own chute.

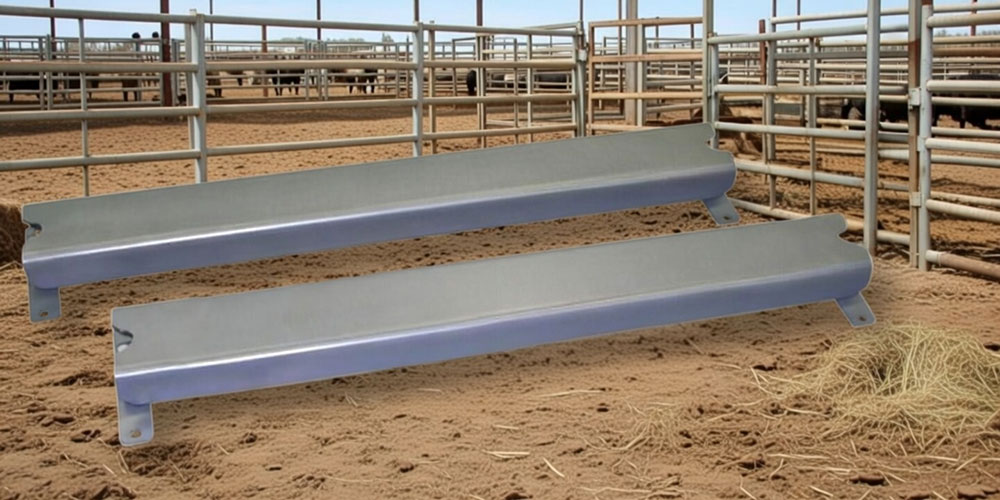

The Chute Weigh System is ideally suited for installation under manual or hydraulic livestock squeeze chutes or livestock scales. Available capacity 10,000 lb—you can select the proper installation for your operation. The low-profile design and straightforward setup let you start weighing accurately in just minutes.

ADDITIONAL FEATURES & BENEFITS

High Capacity Performance

• 10,000 lb gross weighing capacity
• Each weigh bar is rated at 5,000 lb

Low‑Profile Design

• Less than 3.50 inches tall
• Ideal for chute setups with limited clearance

Heavy‑Duty Construction

• Super‑duty steel chassis engineered for long‑term durability
• Built to withstand shock, side‑load forces, and real livestock movement. Easy Mounting
• Designed for quick installation under manual or hydraulic squeeze chutes
• No welding required
• Works for both portable and permanent setups

Rugged Weigh Bar Cables

• Tough 20 ft polyurethane cables
• Flexible, durable, and built for harsh environments

Weatherproof Protection

• Aerospace‑grade sealing agent provides superior moisture resistance
• Ensures long‑term reliability in agricultural conditions

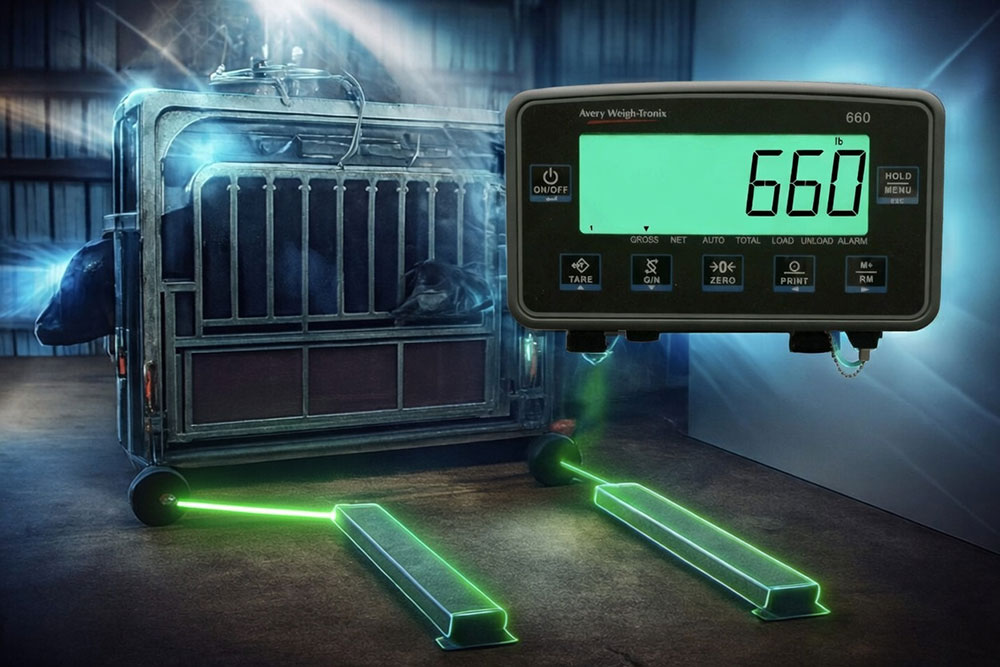

Includes: two Chute Weigh assemblies, 12 VDC wall-mount transformer, Model 660 scale indicator, and indicator mounting bracket. Recommended Model 660 indicator features include: large backlit LCD display, Auto-Loc feature to capture livestock weight, Auto-Accumulate livestock weight and statistics with the number of livestock weight, total weight, and average weight.

Chute Weigh Kit:

Additional Features & Benefits:

• Large weight capacity—5,000 or 10,000 lb. gross weighing capacity (2500/5000 lb. per weigh bar).
• Low profile—Less than 3.50 inches tall.
• Heavy-duty construction—Super heavy duty steel chassis construction.
• Easy mounting—Mounting under manual or hydraulic livestock squeeze chutes.
• Weigh bar cables—Tough polyurethane weigh bar cables, 20ft long.
• Weatherproof construction—Aerospace-developed sealing agent provides ultimate protection against moisture and ensures long term durability in harsh agricultural environment.
• Extreme Temperatures—Operates from -20 degrees to 140 degrees F.
• Herd management—Weight indicator is compatible with various herd management EID software packages.

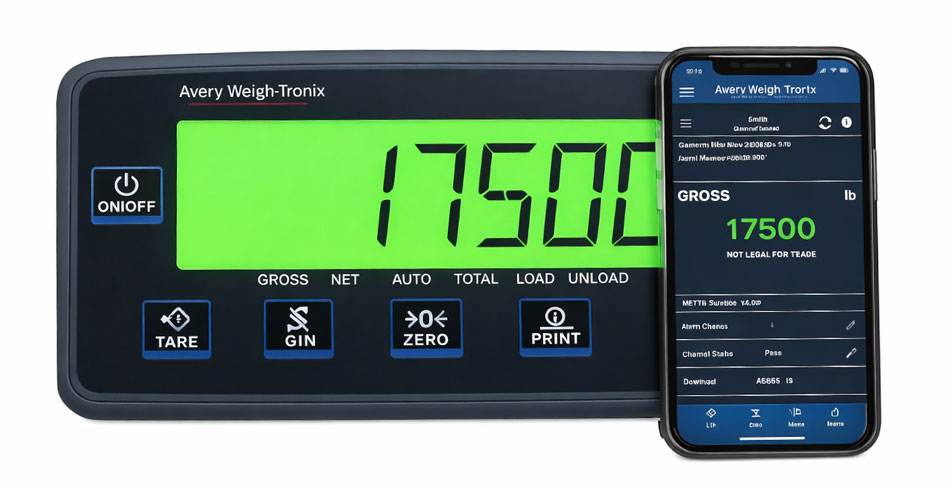

Model 660 Indicator Features

• Large, bright backlit LCD display
• Auto‑Loc function to quickly capture livestock weight
• Auto‑Accumulate for livestock counts, total weight, and average weight
• Compatible with herd management and EID software
• Multiple data transfer options: USB, RS232, Bluetooth®, micro‑SD
